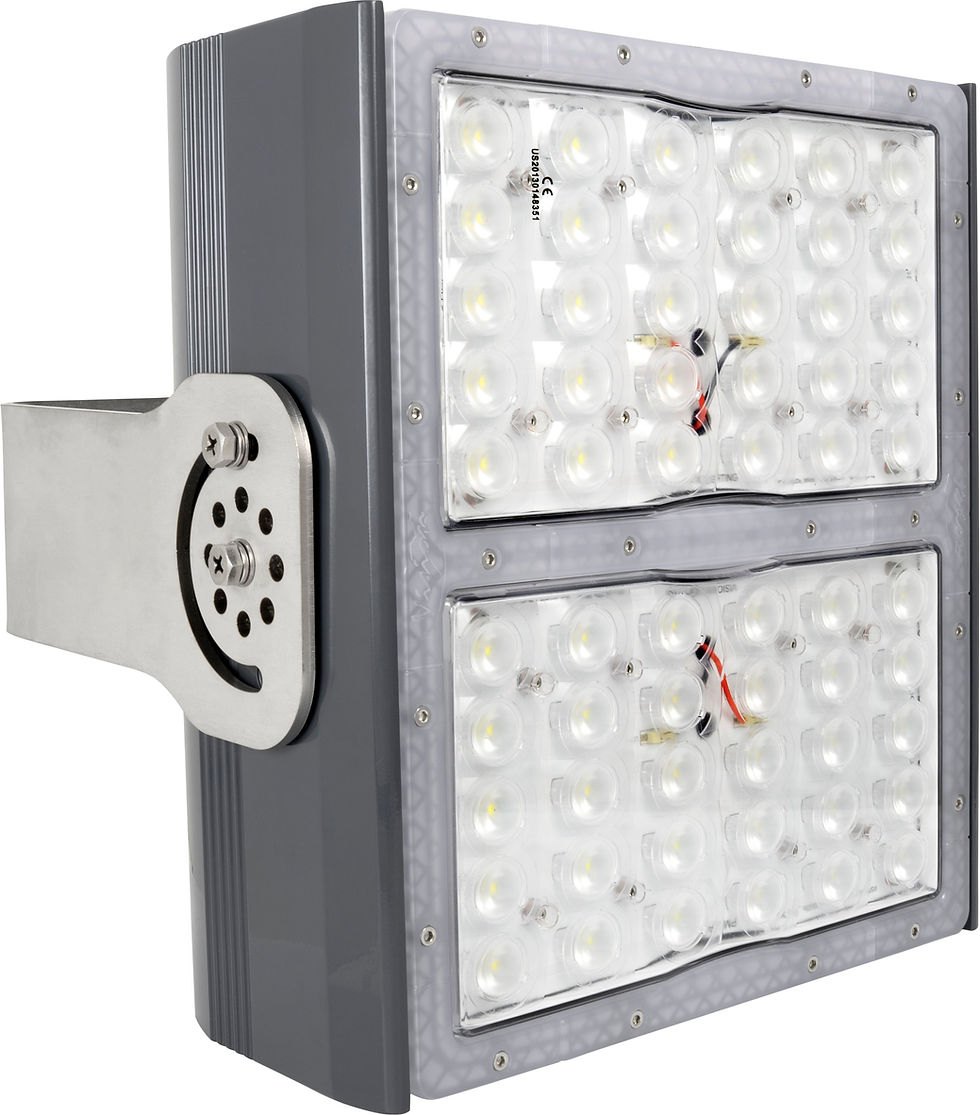

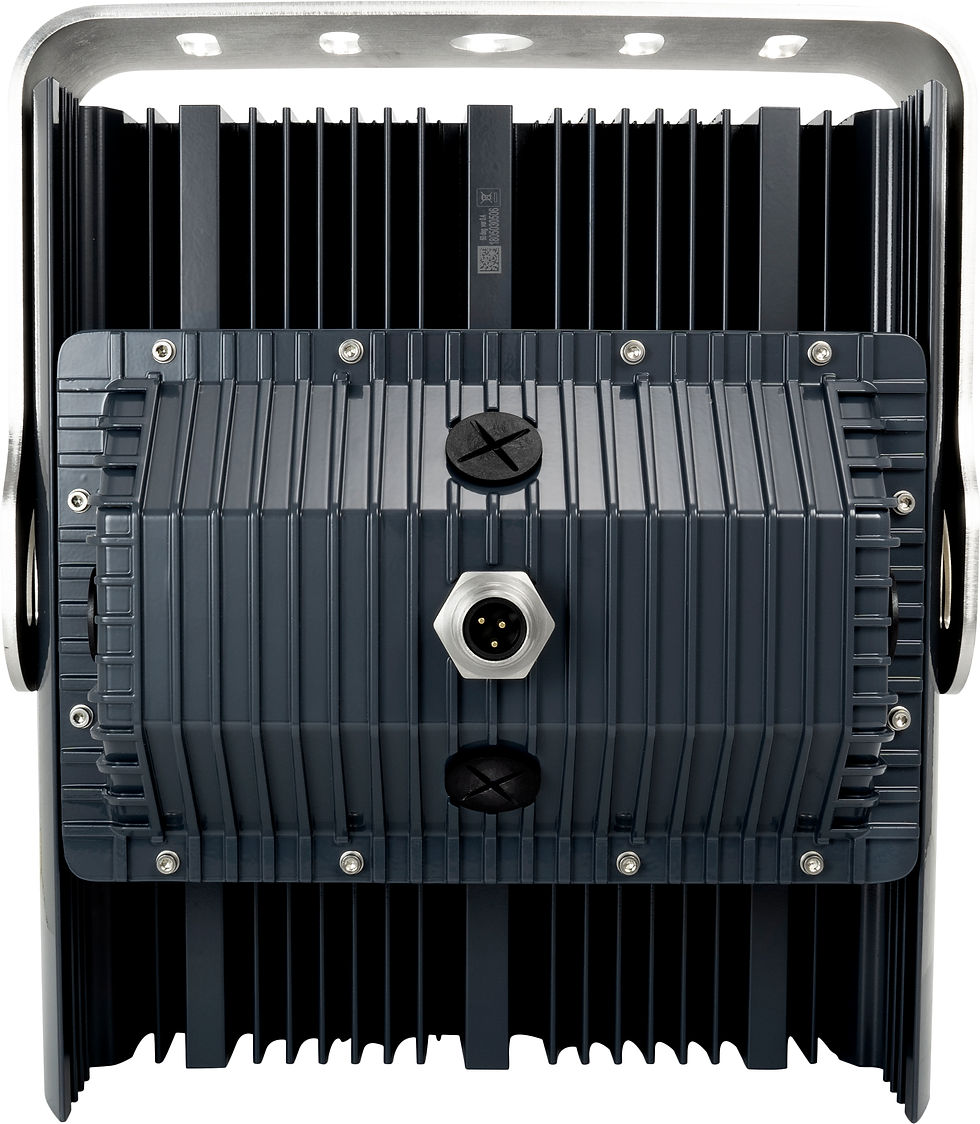

280-Watt LED Fixture with Stainless Steel Bracket

280-Watt LED Light with Stainless Steel Bracket

Product Spec Sheet



  • 1000-watt metal halide replacement luminaire
  • 36,000 lumen, 5000K CCT, 2800K Available
  • 10 25° 40° 60° 90° Beam Pattern Options
  • Redundant Circuit Design, Failsafe Fixture
  • Increased performance over high-pressure sodium fixtures
  • Stainless Steel Heavy Duty Trunnion Bracket
  • UL certification
  • IP-68, IP69k
  • UL 1598A Marine
  • TECHNICAL DETAILS



    • 280W Fixture
    • Mounting Hardware Included
    • 3/4" NPT Quick Connect/Disconnect w/6-foot Whip Included
    • Operating Voltage: 90-305V AC | 127-431V DC
    • Vibration Rating: 15.6 Grms
    • Lens: Polycarbonate
    • Housing: Die-Cast 6061 Aluminum
    • Finish: Gloss Grey
    • Lifespan: +50,000Hrs
  • WARRANTY POLICY

    Extended Warranty:   5 Year Limited



    Proof of purchase is required to validate warranty and is valid from the original date of purchase. All products must be bought through a Vision X Authorized Dealer.

    This limited warranty is not transferrable and extends only to the original Product purchaser.

    Improper installation, accident, abuse, neglect and normal wear are not covered under warranty. Including:

    • Opening light, other than installation specific panels
    • Cutting the interior connector or cord
    • Damage due to physical abuse
    • Damage caused by the installation of the product outside the specified temperature or humidity range described in the Product information sheet
    • Damage caused by any power source problems, including but not limited to unregulated power, short circuits, lighting hits, power surges, or under/over voltage supply
    • Damage caused by the misuse of the Product or use in violation of any applicable national, state, province or local standard, code or instructions.
    • Warranty does not cover broken lenses



      LIMITED WARRANTY ? LED Light Fixtures:

      Vision X Lighting warrants cataloged LED Light Fixtures and LED components manufactured by Vision X against defects in materials and workmanship for a maximum period of 5 years from date of original shipment from VISION X as follow:

    • Year 1 ? Vision X will replace, reimburse or credit 100% of the original purchase price of the defective components or light fixtures at its own discretion
    • Years 2 ? 5 ? Vision X will repair to working condition and returned without cosmetic alterations.
